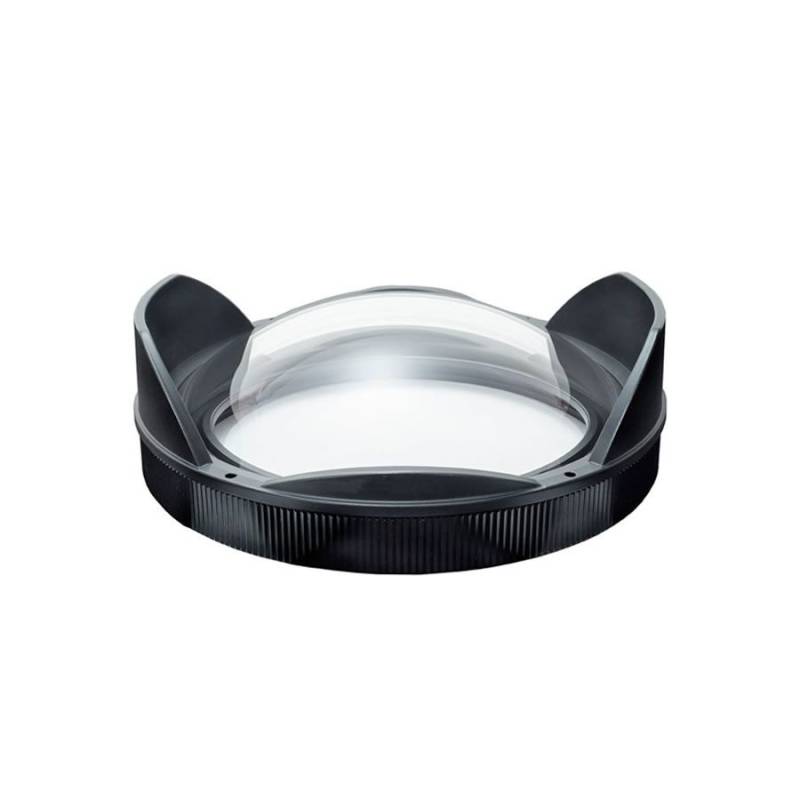

Inon Dome Lens Unit IIIA for UWL-95 C24

Successfully delivers underwater angle of view approx. 141° when using with a digital camera equipped with a large (i.e. 1.0 inch) image sensor. Smaller size comparing to the previous Dome Lens Unit II.

Two Different Dome Materials to Choose; Acrylic or Glass

The Dome Lens Unit IIIA Using High Transparency Optical Acrylic Material

High transparency and lightweight optical acrylic dome provides quality image on a level with that of optical glass dome. Acrylic is better tolerated than polycarbonate to discoloration by inevitable ultraviolet rays outdoors or scratches during long-term usage assuring underwater use. The acrylic version is budget-friendly so would be good choice for those thinking to start wide angle photography.


Optical Multi-coating Dramatically Improves Performance in Backlit Situation

Both acrylic and glass version are finished with optical multi-coating which suppresses flare/ghosting effectively when shooting in bright and clear water or using back lighting technique to produce clear and quality images with appropriate contrast.

Maximum Underwater Angle of View 141°

The UWL-95 C24’s native underwater coverage approx. 95° will further increase to approx. 141° by installing the Dome Lens Unit III. A compact digital camera equipped with a large 1.0-type image sensor fitted with this optical combination enables to deliver vivid wide angle imaging as like an action camera without vignetting.

*Rated angle of view is approximate value.

No Vignetting at Zoom Wide End 24 mm

The Dome Lens Unit III is optimally designed for a compact digital camera equipped with a large 1.0-type image sensor enabling to shoot at wide end 24mm/f1.8 without vignetting. Compatible with a water-proof camera equipped with standard 1/2.3-type image sensor as well to shoot without vignetting at zoom wide end 25mm. No need to zoom in or change camera zoom setting not to have vignetting as like previous models.

Minimum Focusing Distance 0cm

As same as the UWL-95 C24 wide lens, a combination with the Dome Lens Unit III keeps same minimum focusing distance 0cm.* Both Close Focus Wide Angle (CFWA) imaging just in front of a subject or wide imaging to capture broad seascape are possible through the same lens combination.
