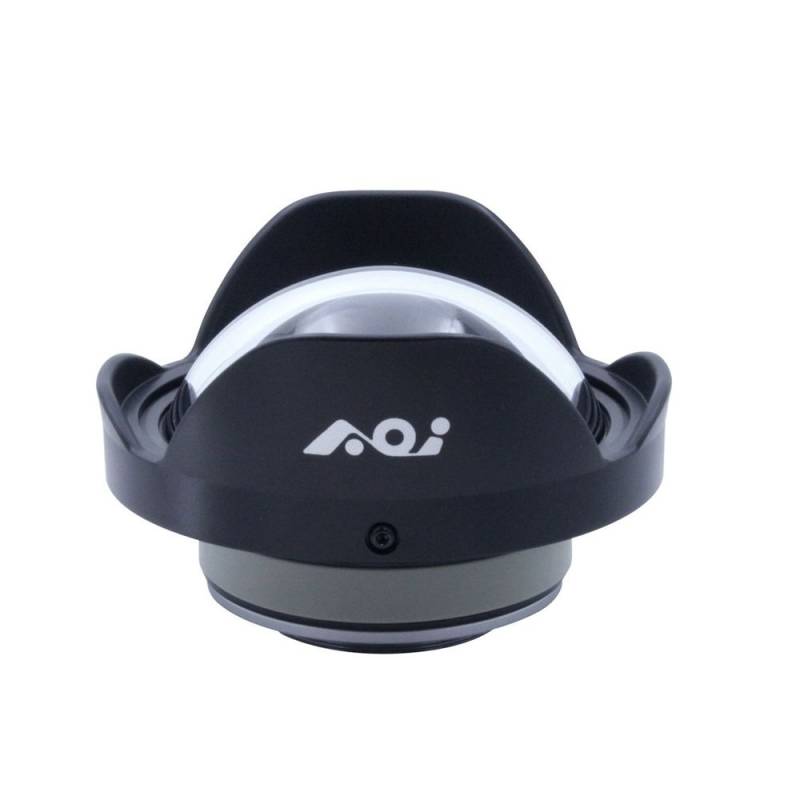

AOI Wide Angle Lens UWL-0400A

Wide angle Lens designed for 52mm port, specially for PT-058 and PT-059.

The AOI UWL-400A 0.50X M52 Underwater Wide Angle Conversion Wet Lens enables you to get in close and fit everything into the shot by increasing the field of view by 100%.

This lens is made by quality lens manufacturer AOI. The AOI UWL-400A version of this lens is the same as the AOI UWL-400 with the only difference that the 52mm thread can be removed and replaced with the quick release system mount from AOI / Fantasea and then mounted on a 52mm port using the AOI Quick Release Mount Base.

This lens will not vignette with any of the following housings:

• Fantasea FG9X II for Canon G9X/G9XII
• Fantasea FRX100V for Sony RX100 III, IV & V
• Olympus PT-056 for Olympus TG-3 & TG-4
• Olympus PT-058 for Olympus TG-5
• Olympus PT-059 for Olympus TG-6 / 7

The Dome Lens allows for amazing underwater images and offers incredible perspective of the undersea landscape. It features fully multi-coated precision optics for maximum light transmission

The lens fits all camera housings with 52mm thread or housings with a 67mm threaded port using a 67-52mm step down ring.

What makes this lens particularly versatile is that it works equally well for video as it does for still images, adding more to your shots while staying easily within the distance limits of flash or video lights.

The dome-shaped lens design offers the maximum field of view underwater. The lens is waterproof to 100 metres (330 ft) and includes neoprene lens covers for mounting and objective sides.

Specifications

• Description: Underwater 0.50X Wide Angle Conversion Lens (Not Included QRS-01-AD3)
• Lens Construction: 5 Elements in 5 Groups
• Lens Coating: All Glass Lens Elements with Multi-layers AR Coating, Front PC Dome Lens with Hard Coating
• Field of View (diagonal): Underwater 120°(with 25mm Lens)
• Magnification: 0.50X (on land / underwater)
• Minimum Object Distant: 0 mm to the Front Dome Lens (on land / underwater)
• Mount System:                M52 Thread changeable for quick release adapter
• Depth Rating: 100 Meters / 330 Ft.
• Bezel / Body Material: ABS / Hard Anodized Aluminum Alloy
• Weight: (on land / underwater)               606g (on land) / 224g (underwater)
• Dimensions: 121.8mm (D) X76mm (H)
• Standard Accessories: Neoprene Dome Cover (DNC-02), Rear Lens Cap (LRC-01), Lens Secure Line (LSL-03) and Carry Case(LPC-04)
