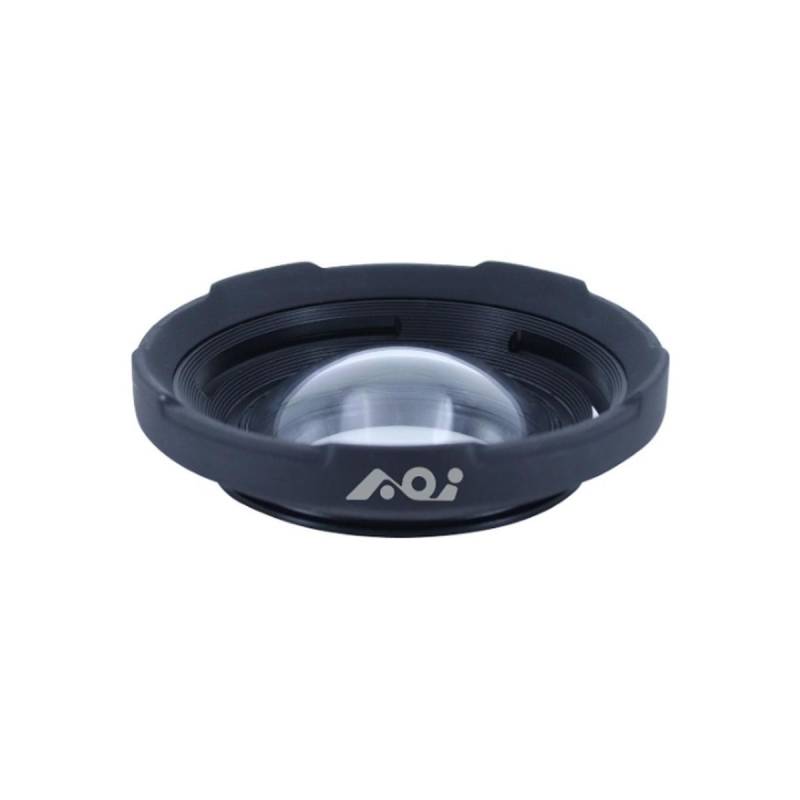

AOI Wide Angle Lens UAL-05

AOI wide angle lens designed for 52mm threaded housings.

Constructed of high strength anodized marine aluminum, weighing only 160 gr on land (20gr in water) and small dimensions (120mm Diameter X 34mm Height) and waterproof to -50m.

Starting from a 24mm angle in the camera, we will achieve a coverage of 81º thanks to its magnification factor of 0.75X.

In addition we can focus on the subject fully attached to the dome, thus achieving macro with a wide background, spectacular.

Comes with neoprene dome cover, back cover, safety hook, all in a sanity case for protection.

• To use flashes with the PT-058 and PT-059 housing and this lens, it is necessary to replace the original flash diffuser in the housing with AOI to adapt the optical fiber.
• This wet lens is not compatible with Seafrogs casing and other double threaded casing models (52-67mm).

UCL-05L Specifications

• Description: Underwater 0.75X Wide Angle Air Lens
• Lens Construction: 2 Groups, 2 Elements
• Working Depth: 50M / 165Ft
• Underwater FOV / Magnification (with Olympus TG-4/5 camera): 81 Degrees / 0.75X
• Mounting: M52 Thread Mount
• Lens Material: Polycarbonate Dome Lens with Hard Coating and Optical Glass Lens with Multi-layers AR Coating
• Barrel/Hood Material: Black Anodized Aluminum Alloy / EPDM
• Dimensions: 120mm (D) X 34mm (H)
• Weight: 160 grams On-land / 20 grams Under-water
• Accessories: ABS Rear Port Cap (LRC-01), Lens Pouch, Secure Lanyard
