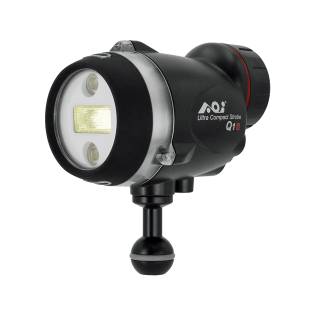

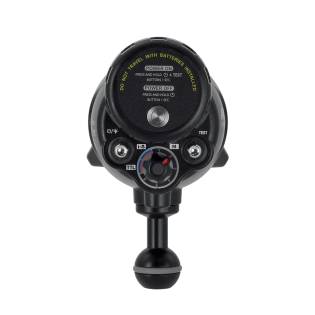

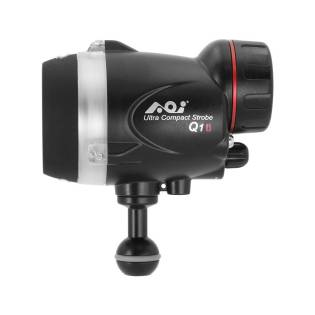

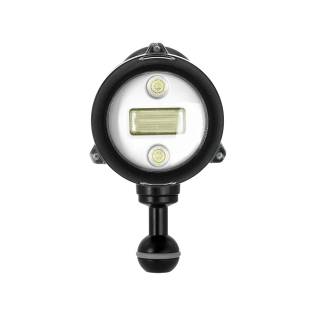

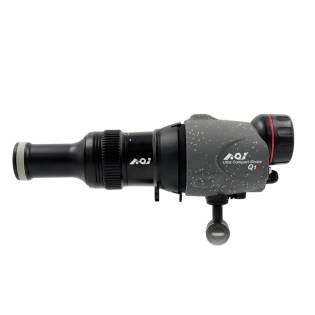

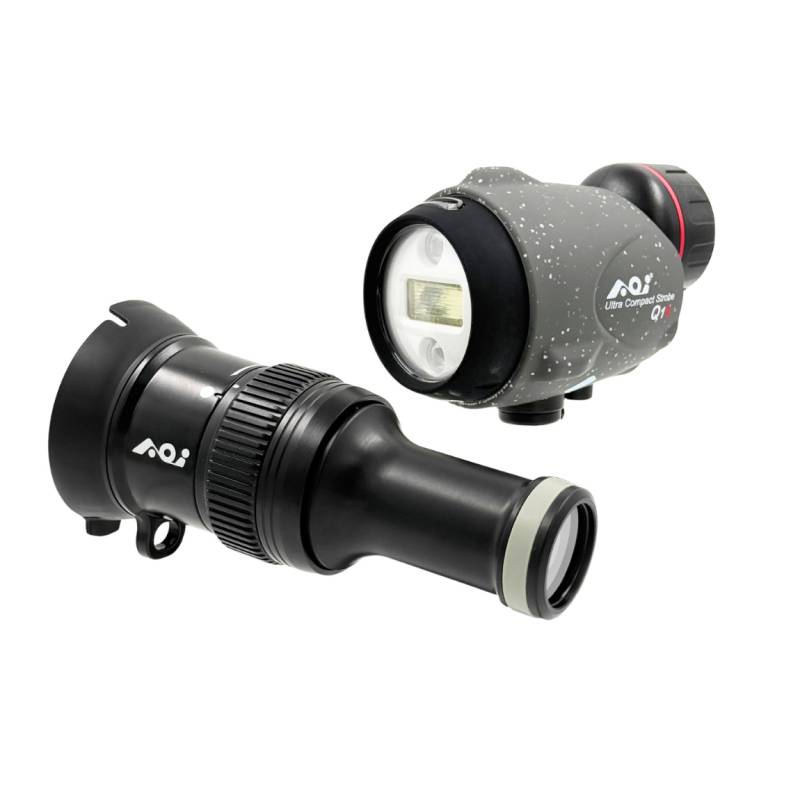

AOI Q1 Pack Ultra Compact Strobe (UCS-Q1i) Black + Snoot

Newest underwater strobe from AOI (in white color). This model has everything you need: InTeLi™ Mode, TTL - RC - Manual and HSS. A perfect and easy to handle, compact strobe with a GN of 22.

UCS-Q1i: Powerful and Compact

The UCS-Q1i is a powerful and compact strobe that redefines underwater lighting technology. Building on the success of the UCS-Q1 and UCS-Q1RC, AOI Ltd continues to push the boundaries of underwater imaging innovation.

A Legacy of Excellence

The award-winning UCS-Q1 became a favorite among beginners thanks to its advanced features typically found in more premium models. The UCS-Q1RC introduced TTL integration for OM System cameras, delivering a seamless experience in both performance and design.

Innovation Through AOI InTeLi™ Mode

AOI Ltd further strengthened its reputation with the launch of the UIS-P1, which introduced AOI InTeLi™ Mode — a next-generation system specifically optimized for underwater photography.

Introducing the UCS-Q1i

The new UCS-Q1i combines the best features of the UCS-Q1 and UIS-P1. It inherits AOI InTeLi™ Mode, offering precise and consistent TTL exposure across a wide range of camera systems, surpassing traditional S-TTL and TTL performance. This intelligent mode automatically adjusts to camera settings, ensuring exceptional accuracy in exposure control.

Refined Macro Capabilities

Included in AOI InTeLi™ Mode is i-Macro Mode, designed to optimize light output for close-up shooting. Underwater photographers can capture intricate details with exceptional clarity, making beautifully lit macro shots easier than ever. AOI InTeLi™ Mode supports Sony TTL and i-Macro, OM System RC TTL and i-Macro, as well as TTL HSS and M-HSS modes.

Unmatched Performance

Most notably, the UCS-Q1i remains the brightest strobe in its class, with an impressive Guide Number 22 (GN22) at ISO100 — delivering powerful underwater illumination. Like the UIS-P1, it also supports High Speed Shutter (HSS) compatibility with Sony cameras, enabling photographers to freeze fast-moving underwater scenes with precision and clarity.

Specifications of the AOI UCS-Q1i

• Model Number: AOI UCS‑Q1i‑WHT
• Description: Ultra Compact Strobe – Q1i
• Main Body Color White
• Main Body Material: Polycarbonate + Glass Fiber
• Depth Rating: 60 meters
• Guide Number: GN 22
• Color Temperature: 5600 K (5000 K with diffuser)
• Beam Angles (with diffuser):Horizontal 85°, Vertical 85°
• Flash Recharge Time: 0.85 s (full power)
• Number of Flashes: 1,500 (full power, using flash only, with 3,100 mAh Li‑Ion batteries)
• Flash Sync.: By fiber-optic cable (multi-core cable recommended)
• Pre-flash Sync.: Pre-flash auto learning / cancellation
• Flash Modes: TTL, i‑Macro, OMDS, RC Flash (Group A, Channel 1); Sony TTL, HSS TTL; FP TTL Auto/Manual; Manual: 1/64, 1/32+0.5, 1/8, 1/4, 1/2, FULL
• Modeling Flash: 2 seconds flashing duration
• Flash Test Button: Yes

Led Lights:

• Maximum Output: 700 lumens
• Power Control: 25%, 50%, 100%, OFF
• Color Temperature: 5600 K
• Beam Angle: 45°
• Burn Time: 130 min (full power, with 3,100 mAh Li‑Ion batteries)

Battery

• Requirements: 2 × 18650 Li‑Ion (not included)
• Output Current Minimum: 5 A
• Minimum Battery Length: 69 mm
• Mounting & Dimensions
• Strobe Mounting: 1″ ball mount (non-replaceable)
• Dimensions (L×W×H): 125 × 77 × 131 mm

Weight

• On Land: Approx. 550 g (batteries included)
• Underwater: Approx. 90 g (batteries included)

Standard Accessories Included

• Strobe diffuser SD‑01
• Control knob extension CKE‑01
• Spare O‑ring set SOR‑01
• O‑ring remover ORR‑02
• Silicone grease (1.5 g)
• Battery storage case BSC‑18650‑2 (batteries not included)
