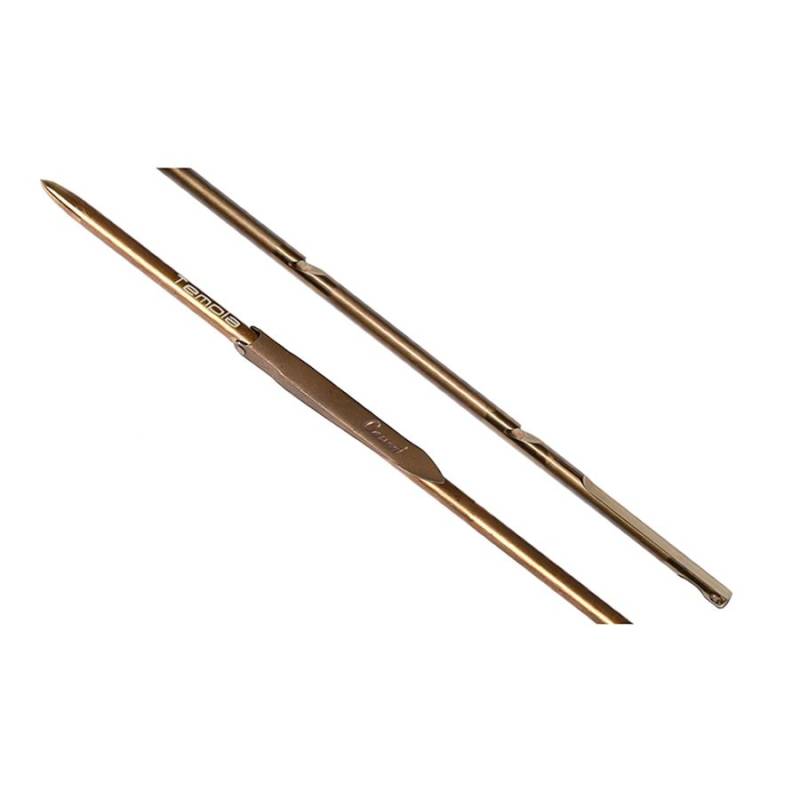

Cressi Templa Shaft 6.25mm

Cressi Templa Shaft 6.25mm

Rod made with finishing parameters and very restricted dimensions to obtain a maximum adaptation to all type of mechanisms.

Mechanism made of stainless steel tools “hard metal” to avoid the pollution of the rod material and possible rust spots of the machined zones.

AISI 630 steel is tempered by a special process of long duration and low temperature that maintains a great elastic memory with a hardness level between 44 and 46 Rockwell.

Very strict control process done rod by rod, before machining, to control the perfect straightness of each rod.

Flopper made of spring stainless steel spring AISI 301 of 0,8 mm of thickness. Mechanical resistance 1269 Nw / mm2 close to the one of the rod itself. The size of the pin and hole are proportional to the rod diameter, between 2 and 2.5 mm. The flopper is made proportionally to the shaft length; 55 mm in rod lengths from 90 to 120 cm and 70 mm in rods lengths from 130 to 150 cm. Flopper at two-volume, made for a maximum hydrodynamic penetration. Assembly with a light rod thickness reduction of 1cm in length that integrates in the profile the rivets and improves significantly the reach of the rod. The thickness reduction is not a loss in the rod resistance since the flopper pin is made proportionally according to the diameter of the rod. Supplied with a flopper holder red o-ring (red color).

Reinforced wishbone fitting with curved radius of machining that makes almost impossible to break the rod in this traditionally weak point. Polyvalent design for metallic and Dyneema wishbones (we recommend to polish the profiles with steel cable). Its design, together with the tempering parameters used, achieve an extraordinary breaking strength in the opening direction of the carved of 190 Nw and 40° of angle.

Bullet design shape end highly resistant and with great penetration.

Available in diameters: Ø6,25 mm,  Ø6,50 mm y Ø6,70 mm.

Measures of length: 75, 90, 105, 110, 115, 120, 125, 130, 135, 140, 150 cm. (depending of the version)

Length Shaft Vs Speargun

• Shaft length 75cm for 45-50 cm speargun
• Shaft length 90cm for 55-60 cm speargun
• Shaft length 105cm for 75cm speargun
• Shaft length 110cm for 75 cm speargun
• Shaft length 115cm for 75 cm speargun
• Shaft length 120cm for 84 cm speargun
• Shaft length 125cm for 84 cm speargun
• Shaft length 130cm for 85-90cm speargun
• Shaft length 135cm for 85-90cm speargun
• Shaft length 140cm for 95-100cm speargun
