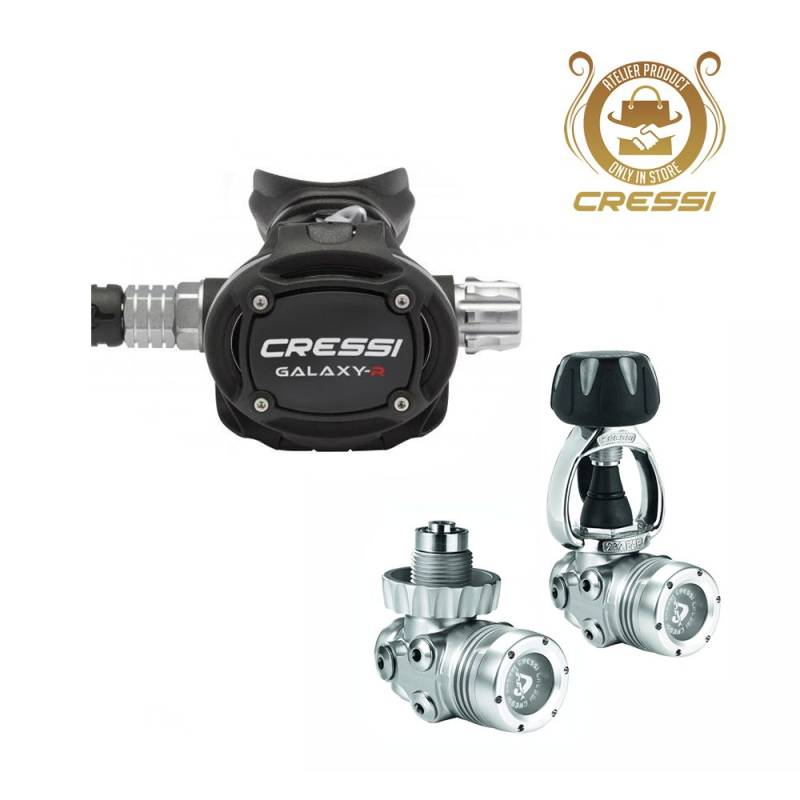

Cressi Regulator Galaxy R T10SC Chrome

Version technically identical to the T10 Master, but with a pleasing and durable satin chrome finish on the first stage and a brushed stainless steel cap on the second stage.
Performance, ergonomic reliability, and ease of maintenance make this regulator a product for true diving professionals. Instructors, guides, dive operators, and researchers will find the answer they need in the Master Ellipse. The first stage stands out from the range of Cressi balanced diaphragm regulators because the mechanism is arranged on an axis perpendicular to the axis of air entry, creating a "T" shape. The advantages of this particular design include better arrangement of the hoses and less space occupied (especially in SC versions for cold water). What's more, this makes it remarkably easy to inspect and access the mechanism to improve maintenance and calibration operations, it uses a larger, high-efficiency conical filter, and the valves are arranged more easily on the tank. The metal body is protected on the surface by a special treatment called PVD (Physical Vapor Deposition), which compared to traditional chrome coatings is exceptionally resilient to the mechanical and chemical wear caused by dives. The DIN fitting has a generous metallic handwheel to make it easier to use in extreme conditions. The Master Ellipse second stage has installed the exceptional and proven Cressi balanced valve to ensure minimum inhalation effort. This valve is paired with a body with metallic parts treated in PVD. What's more, the knob for adjusting inhalation effort is made of a metallic material to guarantee reliability and resistance to blows and scratches.


1st Stage:

  • Hyperbalanced diaphragm with Watertight chamber
  • 2 HP 7/16 UNF ports
  • 4 MP 3/8 UNF ports
  • Operating pressure: 300 bar (4350 psi) DIN Version, 232 bar (3365 psi) International version
  • Calibration pressure: 10 bar
  • Body coated with PVD process
  • High-capacity conical filter in chemically nickel-plated spherical bronze
  • Removable nozzle in AISI 316 steel
  • Hyperbalancing system
  • Anti-pressure drop pneumatic spring
  • Stainless steel calibration spring with micropeening treatment
  • Low-friction technopolymer slider shaft
  • Body protection in polyurethane thermoplastic
  • Quantity of air supplied: 4500 l/min
  • Weight, INT version: 720 gr
  • Weight, DIN version: 602 gr


2nd Stage:

Over-sized intake diaphragm for smoother breathing, the best of its kind: 2810 mm2, 12% more than the high range models offered by competitors. Contact plate with Teflon coated cam to reduce friction.

The box has a hinged opening, no tools needed.
Pneumatic compensation mechanism to guarantee smooth exceptional flow and abundant calibrated air delivery.

Ultralight high range 2nd stage with a mixture of semi-flexible sound-absorbing engineering plastics. Smaller size, 7.5 x 6 cm, only 5% more than the Ellipse and the lightest of all compensator models on the market at just 182 g.

Deflector Dive-Predive without metal parts to personalize the Venturi effect.
Wide angle pivot cam, enhanced to precisely transmit the inhalation effort with minimum friction with the diaphragm disc. Cam-disc diaphragm-valve mechanism with unprecedented reduced friction.
Cold-heat exchanger located inside the second stage to prevent the air from freezing when diving in cold waters.

Exhalation effort particularly reduced without having to reduce the thickness of the diaphragm. The design of the membrane retention system directs the 100% channeled flow towards the nozzles of the bow, taking advantage of a strong Venturi effect. Also, it works to direct the bubbles away from the diver’s field of vision. Embedded membrane to avoid water infiltration in case of brisk turns or jumps to enter the water.

  • Pneumatically balanced
  • Adjustable Venturi
  • Adjustable inhalation effort
  • Patented elliptical diaphragm
  • Patented low-friction lever
  • Air delivery system without injector
  • Adjuster knob coated with PVD process with dual OR
  • Laser-etched titanium front piece
  • Internal heat exchanger
  • Cap opening with Cam-lock
  • Noise-absorbing technopolymer body
  • Removable technopolymer deflector
  • Removable mechanics
  • Weight without hose: 207 gr
