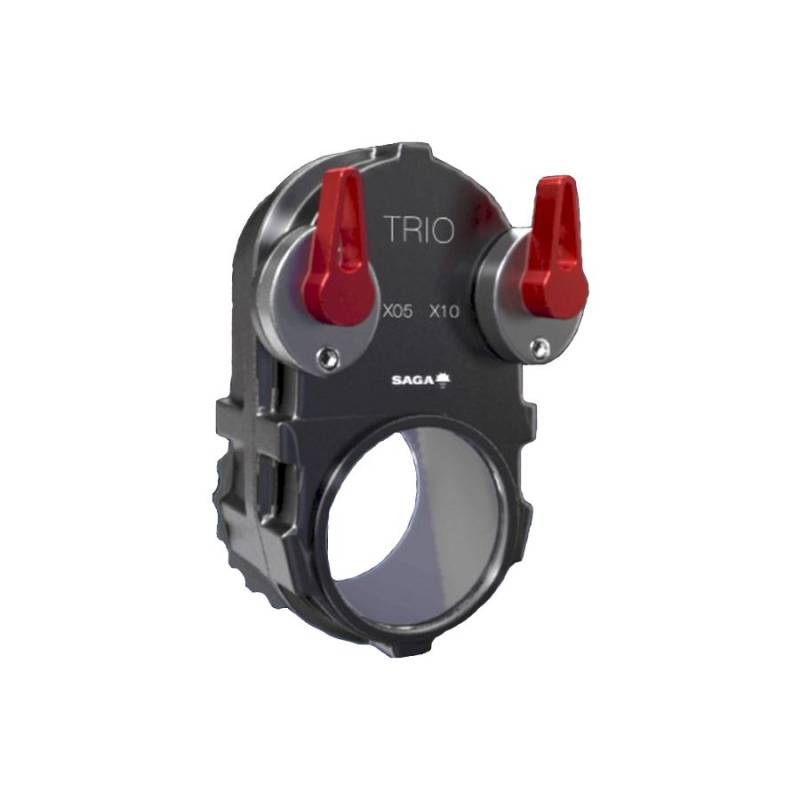

Saga Trio Macro lens

Made of machined and anodized aluminum, it is equipped with two lenses of +5 and +10 diopters that can be lowered independently, thus achieving four levels of magnification.

With the two lenses raised, it will allow us to use the lens to focus even at infinity without any type of vignetting to later be able to lower the lenses independently and achieve magnifications of +5 or +10 diopters or both simultaneously, achieving a magnification equivalent to 15 diopters.

Saga Dive's new TRIO lens   is designed to obtain optimal results with 100-105mm macro lenses but can also be used with lenses such as 60mm or even 150 or 180mm lenses.

The fastening to the headlamp is achieved thanks to a 67mm thread, achieving perfect ease of use with conical headlamps finished in 67mm thread, but it can be adapted to headlamps of practically any brand thanks to the adapter that Saga Dive supplies as an accessory.

In addition, at Saga Dive we think about those situations in which the lens body itself can make lighting or approaching difficult, so we have incorporated some mobility into the clamping design, which will allow the photographer to place the lens in the ideal position. .

General specifications

• Aluminum body (6082)
• 40 micron hard anodized coating
• M-67 thread
• Two flat BK7 lenses with anti-scratch and anti-reflection coating
• Three lens, with two element group
• Weight: 700g.
• Fog sealing process.
• Resistant depth: 100 meters
• 1 group of lenses and another group of two achromatic lenses

Operation

By means of external levers, with a rotation movement towards the center we can position a lens +5 or +10

With the sum of both (+5 and +10), we will obtain a lens of +15
