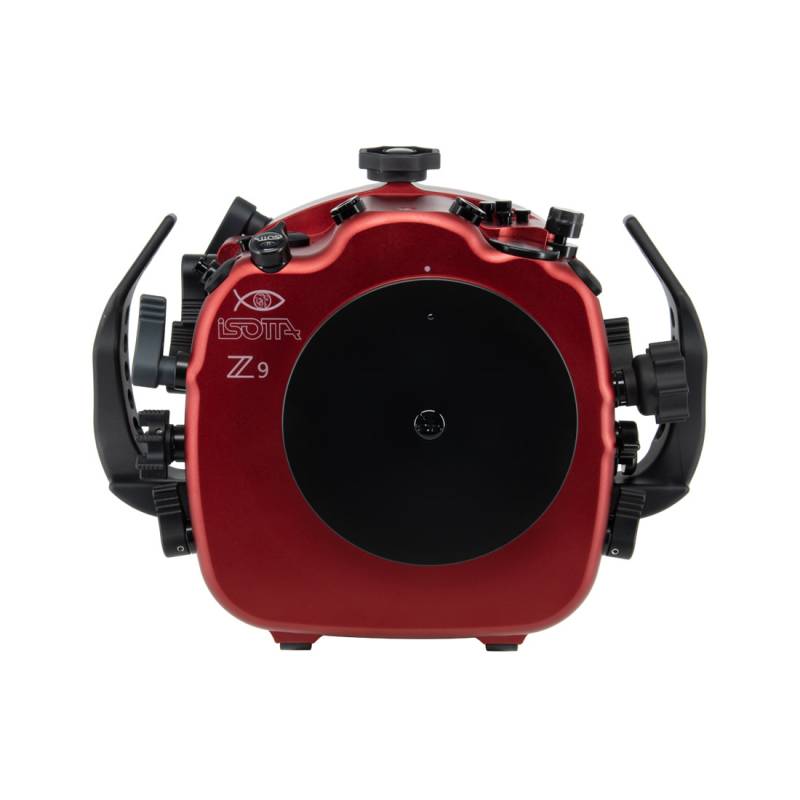

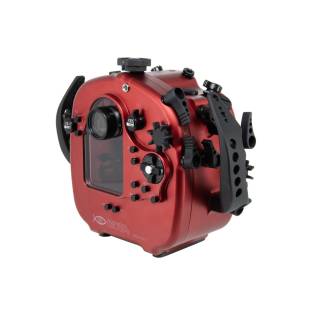

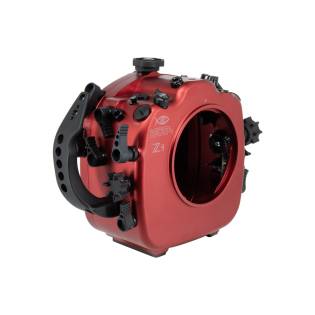

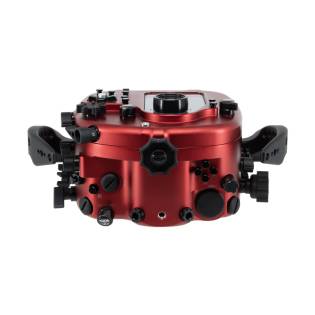

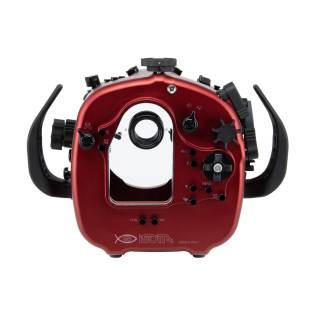

Isotta Housing for Nikon Z9

The Isotta housing Z9 for the Nikon Z7II & Z6II is made from carefully selected aircraft grade aluminum alloy and premium grade stainless steel. It is machined on the latest 5 axis computer assisted machines available, and is protected by anodizing it. While anodizing will protect the housing from the environment, it will fade and discolor if left exposed to the elements, and so for further protection.

The housing for Nikon Z9 allows to capitalize on the camera full potential and to capture amazing pictures underwater.

PRODUCT DETAILS

The durable anodized aluminum protects the camera from water and other damaging elements and its stylish, compact and ergonomic design has been specifically created for the breakthrough models of mirrorless Nikon Z9. The perfect handling of the Isotta signature-red color Nikon Z9 housing is possible by means of adjustable handles crafted to match the human hand and make holding the camera very comfortable even throughout long dives.

Easy access to all key/main camera controls by means of clearly labelled laser-engraved longlasting buttons, even with gloves and drysuit gloves. An quick release camera mounting plate allows the camera positioning and a lever locks the tray inside the housing. The back door has a large window anti-scratch glass for a fine camera display and optical viewfinder view and it is entirely detached from the front body to make easier the camera fitting. External viewfinders can be mounted, INON X-2 compatible.

ONE HAND TO OPEN/CLOSE

The housing for Nikon Z9 is closed with Isotta’s single handed one-turn knob. It’s the only single latch closing mechanism in the DSLR housing market. It’s fast, simple and secure thanks to its double steel pins at the bottom of the housing.

PORTS AND EXTENSION RING

A series of ports and extension rings are available in dedicated section. The removable port is fitted thanks to markers and a bayonet 120 mm connection to the Nikon Z9. The housing has been made on purpose to fit the Nikon FTZ adapter, which does let you use Nikon F-mount lenses on the Z9 – with varying degrees of compatibility. The interchangeable port bodies and extensions rings combine to allow the use of most of lenses on the market for maximum versatility and performance.

OPTIONAL LED TRIGGER

The housing for Nikon Z9 is compatible with the optional LED trigger for manual flash control. It also offers the possibility to use external strobes via two standard optical light ports as well as two optional Nikonos sync cord bulkheads. This allows for easy mounting of any strobe and lighting set up.

CONSTRUCTION AND SAFETY

Only the best materials are used to manufacture our housings such anodized aluminum which is anticorodal and thermo-coated and stainless steel. A longlasting product that requires easy and simple maintenance by the user. Dual high-quality O-Ring seals protect and ensure a perfect and secure watertight for all movable and / or removable parts; a red alarm for humidity/water inside the housing is powered by a battery replaceable by the user. Working depth is 100 metres. Different accessories can be fitted by means of one M8 hole positioned on the upper side of the housing and two threaded M6 holes located on housing bottom side. Three M16x1 threaded holes can be used for different needs such as to accomodate a vacuum.

CONTROLS

• ON/OFF of Nikon Z9
• Ergonomic camera focusing and shutter button for an easy use with gloves
• Lens release
• Rear control panel
• Upper control panel
• All controls are available on the housing

Technical specifications

• Red color anodized aluminum body;
• Ergonomic side handles, adjustable (optional accessory);
• Two fiber optic connections;
• Two optional electrical sync cord bulkheads;
• Back housing completely detachable from the front housing;
• Dedicated REC lever and ISO button;
• Tray with lock for an easy fitting of the camera;
• Single-hand closing knob for back housing;
• Three M16 holes and one M28 for installation of accessories, e.g. syncro cords, vacuum valves, monitors
• Aluminum buttons and dials with engraved symbols identical to camera controls;
• All camera controls are external;
• Wide back display viewfinder glass;
• Optical viewfinder;
• Double O-Ring seals on all buttons and removable parts;
• Moisture alarm with LED and an acoustic warning signal (replaceable battery);
• Removable port - 120mm bayonet;
• Ports security latch to prevent accidental opening;
• Wide, rubber covered feet for solid footing;
• One M8 hole located on upper side of the housing for various accessories such as focus lights;
• Two M6 holes located on housing bottom side for different accessories such as brackets for strobes or tripods;
• External viewfinders can be mounted, INON X-2 compatible;
• Depth rated to 100 metres;
• Weight: 2100 grams (with handles);
• Size in mm: 200 W. x 117 D. x 173 H

What is included

• Underwater housing
• Front lid
• Handles
• ISOTTA standard viewfinder
• Moisture sensor
• Fiber optic connections (to shoot it needs an additional trigger)
• Spare o-ring kit
• Silicone grease 15gr
• 2 years manufacturer warranty
