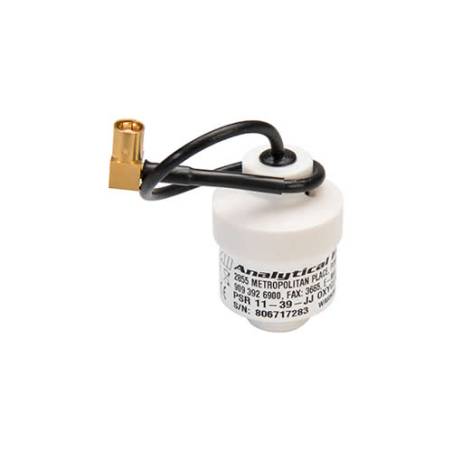

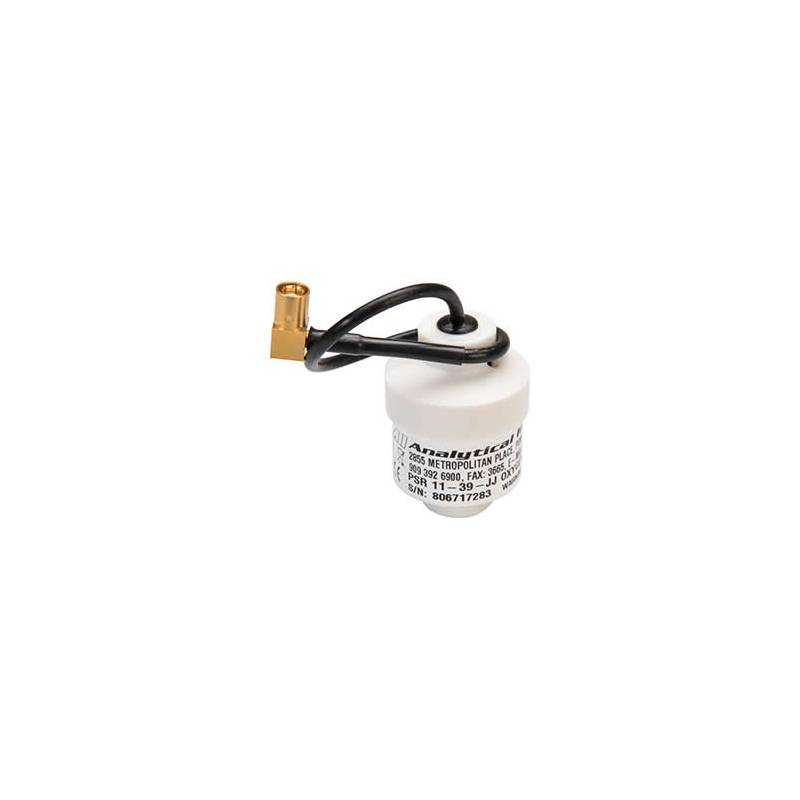

AII Sensor Oxígeno para JJ Rebreather

AII Sensor Oxígeno para JJ

Oxygen sensor for:

JJ Rebreather "Retrofit". R-17JJ-CCR Sensor

• Analytical Industries Inc (Aii) design and manufacture galvanic oxygen sensors for the recreational and commercial diving user.
• All diving sensors are quality assured and individually tested to ensure reliability and stability with each sensor provided with pressure and test data (end of line testing for stability at ambient and 100% oxygen, 30" of water column pressure test).
• Aii manufacture and ship only "fresh" diving sensors direct from our factory in California, USA.

Specifications

• Measuring Range: 0-100%
• Accuracy: +/-2% of Full Scale
• Signal Output: 9.5 - 13 mV
• Linearity: +/-2% of Full Scale
• Response T90: 6 sec
• Temp Coefficient: Compensated
• Operating Temp: 0 to 45°C
• Recommended Storage: 0 to 25°C
• Qualified at: 1.8 ATA
• Shelf Life: 6 months
• Humidity Non-condensing: 0-99% RH
• Expected Life: 42 months
• Warranty: 12 months
• Electrical Conn 90° SMB Female on 5.25" cable
