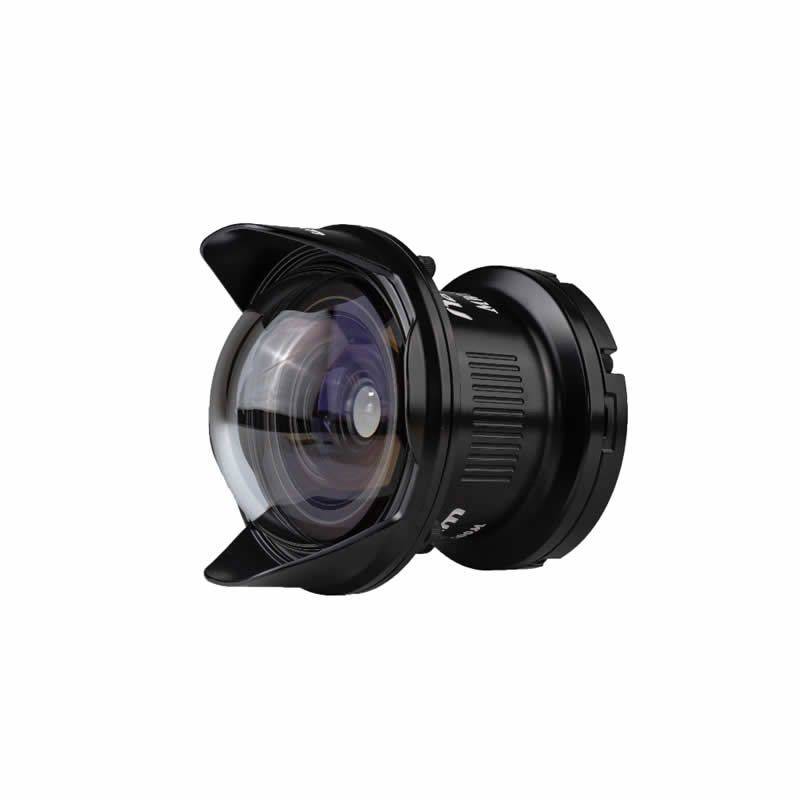

Nauticam MWL-1 Fisheye Conversion Lens

Nauticam MWL-1 Fisheye Conversion Lens for 60mm (FF Equivalent) Macro Lenses

The Nauticam MWL-1 is a revolutionary concept!  It is a wet-mounted ultra wide lens (meaning it can be attached and removed underwater) designed to be used with a 60mm full frame equivalent macro lens that results in an ultra-wide 150º field of view. The MWL-1 can focus from the lens' front element to infinity.  Ultra wide angle and macro perspectives are now available on the same dive - even with full frame DSLR systems.

Unlock a Different Perspective

Use the unique MWL-1 wet lens to either capture wide angle scenics on a macro dive or to capture impactful close focus wide angle images of macro subjects.

Mounting Options

The MWL-1 can be mounted to supported M67 threaded ports using the Nauticam Bayonet Mounting System or with either a single or dual flip mount.

Technical Specifications

• Outer Diameter x Length: 108 mm x 120 mm
• Weight (air / water): 1.20kg / 0.58kg
• Body construction: Hard-anodized Aluminum Alloy
• Lens construction: 7 elements in 5 groups (one aspherical element)
• Lens coatings: Both side anti-reflective coating
• Focal distance: From front element of lens to infinity
• Field of view (underwater): 150° (FF. 60mm equiv.)
• Mount system: Nauticam Bayonet Mount or M67
• Depth rating: 100m

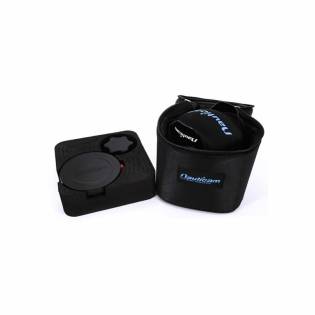

What's In The Box?

• MWL-1
• Neoprene Cover
• M67 to Bayonet Mount Converter (83213)
• Rear Lens Cap for MWL-1/WWL-1 (83221)
• Bayonet Mounting Ring for MWL-1
• Front Cover for Bayonet Mounting Ring
• Carrying Bag and Cleaning Cloth

Recommended Accessories:

• M67 Flip Holder for MWL-1 (86221)
• Double Flip Holder for MWL-1 (86222)
• Bayonet Mount Holder for SMC/CMC (83214)
• Bayonet Mount Lens Holder for Arms (83222)
• Bayonet Mount Double Lens Holder for Arms (83223)
• Bayonet Mount Holder for Inon Float Arms (83227)
