Nauticam Pack Pro Carcasa NA-G7X III

Nauticam NA-G7X III para Canon G7X III

Offering multimedia fluency within a compact design, the Canon PowerShot G7X Mark III is a sleek camera distinguished by its advanced sensor design and flexible imaging capabilities. Its 20.1MP 1" CMOS sensor uses a stacked design, which pairs with the DIGIC 8 image processor to realize especially fast focusing performance, full-resolution shooting at up to 20 fps, and UHD 4K30p video recording. Optically, the G7X Mark III houses a 4.2x zoom lens, which covers a 24-100mm equivalent focal length range for wide-angle to short-telephoto fields of view. An f/1.8-2.8 maximum aperture range suits working in difficult lighting conditions as does an Optical Image Stabilizer, which compensates for the effects of camera shake. The camera's slim design also incorporates a 3.0" 180° tilting touchscreen LCD and has both Bluetooth and Wi-Fi for wirelessly connecting to a mobile device.

Key Camera Specifications

• 20.1MP 1"-type BSI CMOS sensor
• 24-100mm F1.8-F2.8 lens
• 3" tilting touchscreen LCD
• 30 fps continuous shooting at 8.8 MP resolution (RAW)
• 4k/30p 1080/60p video capture

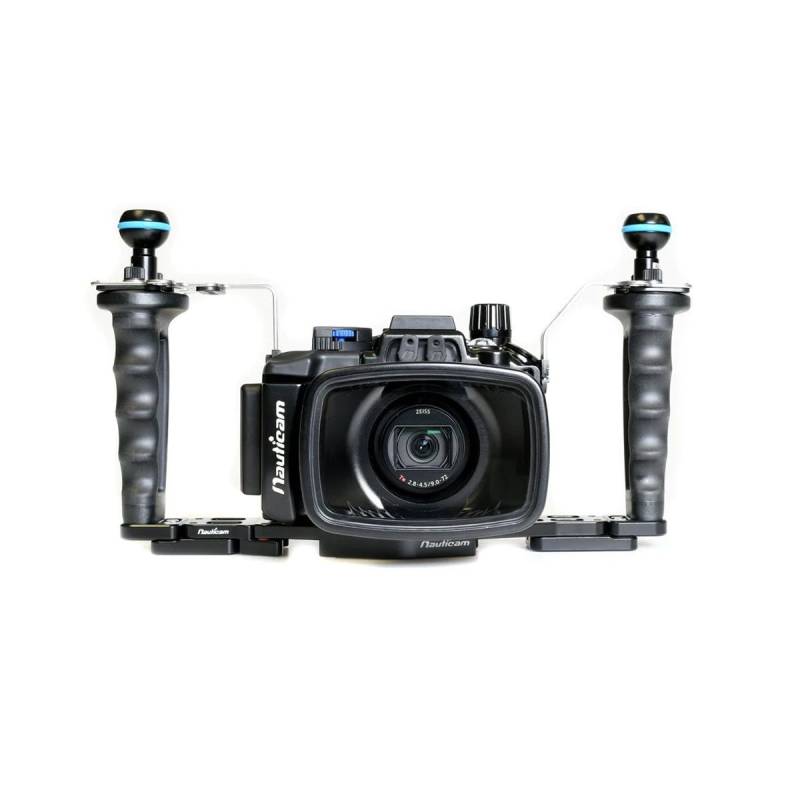

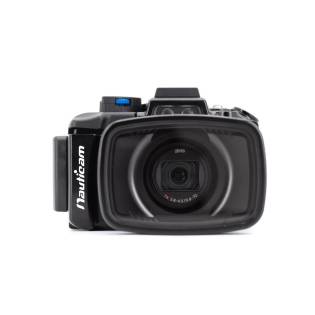

The Nauticam NA-G7X III housing

NA-G7XIII is the latest iteration in a lineup of advanced housings for very capable compact cameras supported by Nauticam.  Many features found on professional DSLR systems have been integrated into this system, and the result is an underwater housing that allows the user to harness the full potential of this advanced compact camera in the water.

The basic functions and ergonomic enhancements that Nauticam users have grown to know and love are incorporated in NA-G7XIII.  The housing is machined from a solid block of aluminum, then hard anodized to seal out corrosive salt water.  It is closed via a simple, yet secure locking rotary latch. The right side of the housing is sculpted to fit the palm of the user’s hand, and Nauticam’s two-stage shutter release lever provides clear differentiation between the half press and full press shutter release positions.  All functions are clearly labeled.

The Nauticam leak alarm and vacuum monitoring system is installed as standard equipment.  This system provides an audible and visual alert to any water entry in the housing, and when combined with an accessory M14 Vacuum Valve (#25624) the watertight integrity of the system can be tested before ever entering the water and monitored during every dive.

Expert product design, modern manufacturing techniques, top quality materials backed by a two-year warranty, and a critical focus on the user experience combine to produce the premier system for Canon Powershot G7X Mark III.  The Nauticam NA-G7XMKIII.

NA-G7XIII Feature Checklist

• Secure, easy to use locking latch
• Ergonomic controls with size, shape and color differentiation
• All camera controls accessible
• All controls clearly labeled
• Popup flash lever
• Dual fiber optic bulkhead
• Integrated leak detector and optional vacuum check
• M10 mounting ball
• Cold shoe mount
• Interchangeable port mount
• Standard port: full zoom through & m67 accessory mounting
• 1/4-20 tripod or tray mounting holes
• Sculpted, sensitive shutter release
• M14 bulkhead port for vacuum valve

What's in the box

• NA-G7XIII housing
• N50 Standard Port
• Instruction manual
• Spare silicone rubber housing o-ring (90135)
• O-ring remover
• CR2032 battery (for moisture alarm)
• Lubricant
• Set of Allen keys
• Set of handle brackets with shutter release trigger

Recommended accessories

• 25624 M14 Vacuum Valve II (Pushbutton Release)
• 25123 LCD Magnifier attachment rails for NA-S110/S120/TG3/G7X/G7XII/G7XIII
• 25106 LCD Magnifier with Dioptric Adjustment
• 38022 Diffuser for NA-G7X/G7XII housing (for production version)
• 71206 Easitray II with left handle (with 2pcs 1/4'' screws)
• 71207 Flexitray II with left handle (with 2pcs 1/4'' screws)
• 71208 Adjustable right handle II (for Easitray II &Flexitray II)
• 38702 N50 3.5'' acrylic Dome Port
• 38703 N50 Short Port with Bayonet Mount (To use with WWL-1)
• (*zoom range 24-65mm)
• 83201 Wet Wide Lens 1 (WWL-1) 130 deg. FOV with compatible 28mm Lenses
• 83214 Bayonet Mount Adaptor for SMC/CMC
• 81301 Compact Macro Convertor 1 (CMC-1, 4.5X Magnification)
• 81302  Compact Macro Convertor 2(CMC-2, 2.8X Magnification)

Technical Data Specifications

• Depth Rating: 100m
• Weight: 0.88kg
• Dimensions: 146mm (w) x 101mm (h) x 109mm (d)
